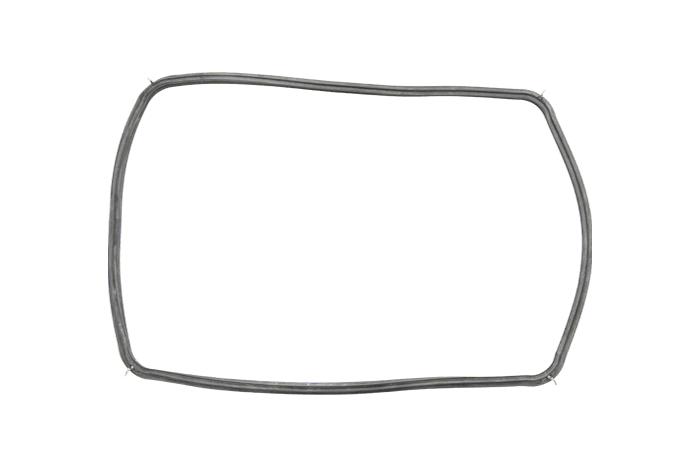

Door seal for Smeg oven (754131752)
The door seal for Smeg oven (part number 754131752) is designed to seal the internal chamber of the oven, preventing heat loss and maintaining stable temperature control. This part is made from heat-resistant rubber, capable of withstanding temperatures up to +315 °C, ensuring durability and reliability in use.
Technical specifications:
- Material: Heat-resistant rubber
- Size: 450 mm (width), 340 mm (height)
- Number of hooks: 4
- Profile width: 11 mm
- Profile height: 11 mm
- Hook length: 8 mm
Compatibility:
The seal is compatible with various Smeg oven models. To find the right model, use the Ctrl+F key combination for quick searching in the compatibility table below.
| Brand | Models |
|---|---|
| Smeg | List of Smeg models compatible with the seal: |
| A2-8, A2BL-8, A2D-8, A4-8, A4-81, A4BL-8, A4BL-81, ALFA43PRE, AP561X-8, AP578X-8, CB60CSV8, CB60G8, CB60MSE8, CB60SV8, CC92MX8, CG92N8, CG92X8, CS20-8, CS20FB-8, CS20NL-8, CS20NLA-8, CS20NLK, CSA122X-8, CX60EMS8, CX60SV8, CX61GV8, CX6SV8, CX6SVNL8, F608SB, F608SN, F608X, GM93X8, HBL6EI231, BN6EI231, HG10LE150, HG10LG050, MHGL10E150, HGL10G050M, HGL21F350, HGN10E050, HGN10E060, HGN10G050, HGN10G060, HGN21F350, HGN22F350, HGN22H350, HSL6EI231, JLFSEC608, JLFSEC610, LFSMC607, JLFSMC609, JLRC904, JLRC905, SA109-8, SA304X1-8, SA304X-8, SA306X-8, SA561X-8, SA561X-9, SA578X-8, SA578X-9, SC0468X-8, SC0485X-8, SC0521X-8, SC0578X-8, SC061X-8, SC106-8, SC106AL-8, SC106B-8, SC106N-8, SC106PZ-8, SC106SG-8, SC107N-8, SC107SG-8, SC109-8, SC109-8C, SC109N-8, SC109SG-8, SC166-8, SC166PZ-8, SC250X-8, SC341GX-8, SC341GXD8, SC371X-8, SC372X-8, SC381X-8, SC381XPZ8, SC420GN-8, SC425X-8, SC436N-8, SC436X-8, SC465AV-8, SC465B-8, SC465L-8, SC465N-8, SC465X-8, SC465X-8C, SC468X-8, SC485N-8, SC485X-8, SC521N-8, SC521X-8, SC536X-8, SC551X-8, SC561BT-8, SC561N-8, SC561X-8, SC561XT-8, SC562XN, SC568X-8, SC578N-8, SC578X-8, SC700AX-8, SC700BS-8, SC700PO-8, SC800A-8, SC800AVO8, SC800AVO9, SC800B-8, SC800C-8, SC800GAO9, SC800GPO9, SC800GVA8, SC800GVP8, SC800GVP9, SC800P-8, SC800P-9, SC805A-8, SC805AO-8, SC805AO-9, SC805AVO8, SC805AVO9, SC805P-8, SC805P-9, SC805PO-8, SC805PO-9, SC850A-8, SC850APZ8, SC850AVO8, SC850AVO9, SC850P-8, SC850RA-8, SC850X-8, SCB60GX8, SCB60MX8, SCB61GVX8, SCD60EMX8, SCD60GX8, SCD60MX8, SCD61GVX8, SCMW580PZ, SCT105-8, SCT105-9, SCT105N8, SCT105N-9, SCT105SG8, SCT105SG9, SCT109-8, SCT109B-8, SCT109N-8, SCT109SG8, SCT475X-8, SCT485X-8, SCT486X-8, SCT486X-9, SF0351X, SF102GV, SF102GVB, SF102GVK, SF102GVN, SF102GVS, SF341GGX, SF341GGXK, SF341GVX, SF341GVXD, SF341GX, SF402GVK, SF420GN, SF425X, SF465AL, SF465AV, SF465B, SF465N, SF465TT, SF465X, SF521N, SF521X, SF561B, SF561BT, SF561N, SF561N-AR, SF561NTW, SF561X, SF561X-AR, SF561XT, SF61M3GVN, SF61M3GVS, SF6302GVK, SF6341GGX, SF6341GGXK, SF6341GVX, SF6341GVX-AR, SF6341GVXD, SF6341GX, SF800GVAO, SF800GVP, SF800GVPO, SFT470X, SFT476X, SFT570X, SNL60MX8, SNL61GX8, SNL61MA8, SNL61MX8, SNL926MA8, SNL926MX8, SSA60MX8, SUK62CMX8, SUK62MBL8, SUK62MX8, SUK92CBL8, SUK92CMX8, SUK92MBL8, SUK92MP8, SUK92MP9, SUK92MRW8, SUK92MX8, SY62MX8, W320N, W320NX, W361B, W361N, W361X, NW378X | |
How to choose the right seal?
When selecting a door seal for your oven, pay attention to the following parameters:
- Ensure that the dimensions of the seal match those of your oven.
- Check that the seal is made from heat-resistant material that can withstand high temperatures.
- Verify that the number and size of hooks meet your requirements and the specifications of your model.
Reasons for seal failure and prevention methods
- Mechanical damage: avoid excessive pressure on the seal when closing the door.
- Improper installation: follow the instructions when installing the seal to avoid misalignment.
- Model mismatch: use only a compatible seal to prevent rapid wear.
- Violation of operating conditions: adhere to the oven's operating recommendations, avoiding sudden temperature changes.
Difficulty of seal replacement
Replacing the oven door seal is a moderately difficult task. Follow this step-by-step guide:
- Disconnect the oven from the power supply.
- Remove the old seal by gently pulling it away from the door.
- Clean the surface of any remnants of the old seal and debris.
- Install the new seal, evenly distributing it around the perimeter of the door.
- Check that the seal is securely in place and has no gaps.
- Reconnect the oven to the power supply and test its operation.
By following these recommendations, you can successfully replace the seal and ensure the efficient operation of your oven.
