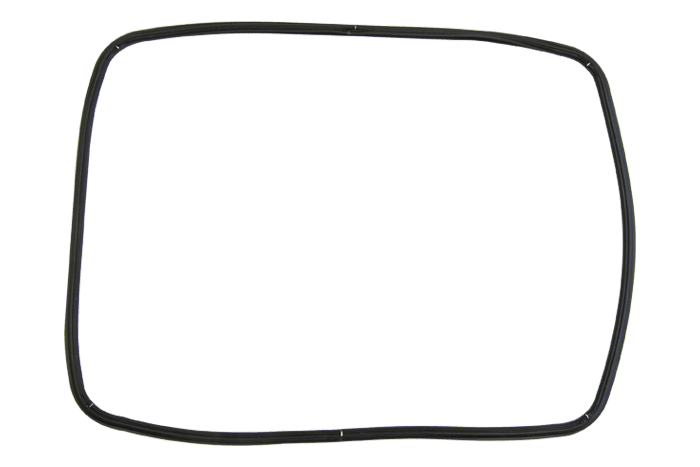

Door seal for Bosch oven FR03BO03 00095253, 420*310 mm
The door seal for Bosch ovens FR03BO03 00095253 is designed to ensure the airtightness of the oven chamber, preventing heat loss and maintaining a stable temperature during operation. This heat-resistant rubber component is easy to install around the perimeter of the oven door. Its high strength and resistance to high temperatures make it an ideal choice for replacing an old or damaged seal.
Main specifications:
- Dimensions: 420 mm x 310 mm
- Profile width: 10 mm
- Profile height: 6 mm
- Distance between hooks: 210 mm (length), 310 mm (height) ± 5 mm
- Number of hooks: 6
- Hook height: 5 mm
- Material: heat-resistant silicone rubber
- Temperature range: withstands up to +315°C
Compatibility:
This seal is compatible with various oven models, including those from Bosch, Siemens, and Vorwerk brands. To find the required model, use the Ctrl+F key combination.
| Brand | Models |
|---|---|
| Bosch | D3HBN122ACC/01, D3HBN122AEU/01, D3HBN122AEU/02, D3HBN122ASK/01, D3HBN122BEU/01, D3HBN122BEU/02, D3HBN122BSK/01, D3HBN126ACC/01, D3HBN126ACC/02, D3HBN126BEU/01, D3HBN126BSK/01, ... |
| Siemens | HB12020EU/02, HB12020SC/01, HB12020SK/01, HB12021EU/01, HB12021EU/02, HB12021SC/01, HB12021SC/02, HB12021SK/01, HB12021SK/02, HB12024SK/01, HB20024SK/01, HB20054SK/01, HB22020EU/01, ... |
| Vorwerk | EH714, HE1VWB2/01, HE1VWB3/01, HE1VWB3/02, HE2VWA4/01, HE2VWA5/01, HE2VWA5/02, EH710, HE1VWA5/01, HE1VWA5/02, HE1VWA6/01, HE1VWA6/02, HE1VWA6/03, HE1VWB1/01, HE1VWB3/03, ... |
How to choose the right seal:
To select the appropriate seal, pay attention to the following parameters:
- Seal dimensions (length and height).
- Number and placement of hooks.
- Compatibility with the specific oven model.
Compare these parameters with the original part to avoid mistakes when purchasing.
Causes of failure and prevention methods:
The main causes of seal damage include:
- Mechanical damage, such as cuts or punctures.
- Improper installation, which can lead to deformation.
- Wear from prolonged use.
To prevent premature wear, regularly check the seal for damage and ensure it is installed correctly.
Replacement difficulty:
Replacing the oven door seal is a relatively simple procedure that can be done by yourself. Follow these steps for replacement:
- Disconnect the oven from the power supply.
- Remove the old seal by carefully pulling it away from the surface.
- Clean the installation area of any remnants of old adhesive and dirt.
- Adhere the new seal, evenly distributing it around the perimeter of the door.
- Ensure the seal is securely attached and has no gaps.
- Reconnect the oven to the power supply and check its operation.
The difficulty of replacement can be rated as low; it does not require special tools or skills.
