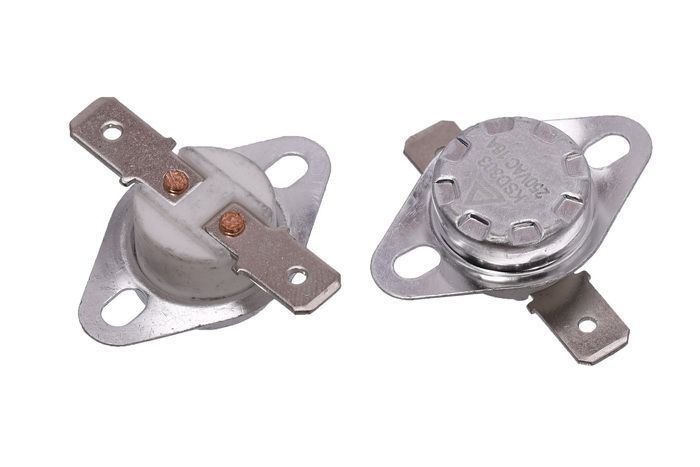

KSD301 thermostat, 60 °C, 250 V, 15 A - a universal solution for temperature control
The KSD301 thermostat is designed for temperature management in various devices. This non-adjustable device breaks the electrical circuit when the temperature reaches 60 °C, helping to prevent overheating and damage to equipment. It is ideal for use in both household appliances and industrial systems.
Technical specifications:
| Switching temperature (±5%): | 60 °C |
| Rated voltage: | 250 V |
| Rated current: | 15 A |
| Body diameter: | 16 mm |
| Distance between mounting holes: | 21-26 mm |
| Connection: | 2 contacts (6.3 mm) |
| Body material: | carbolite |
| Contact type: | normally closed |
How to choose the right thermostat:
When selecting the KSD301 thermostat, consider the following points:
- Switching temperature: Ensure that the required temperature matches the thermostat's specifications.
- Rated voltage and current: Check that the thermostat meets the technical requirements of your device.
- Dimensions: Make sure that the body diameter and distance between mounting holes are suitable for your equipment.
Possible causes of failure and prevention methods:
The KSD301 thermostat may fail for the following reasons:
- Overheating due to improper use of the device.
- Mechanical damage or corrosion of contacts.
To prevent wear, you should:
- Regularly check the condition of the device and its connections.
- Avoid overheating the equipment to prevent frequent thermostat activations.
Difficulty of replacing the KSD301 thermostat:
Replacing the KSD301 thermostat is a moderately difficult process that can be done independently. Here are the steps for replacement:
- Disconnect the device from the power supply.
- Remove the protective cover, if present.
- Disconnect the old thermostat, noting its connections.
- Install the new thermostat, connecting it in the same order.
- Check the device's functionality by turning it on and observing the thermostat's operation.
It is recommended to refer to your device's user manual for additional instructions.
