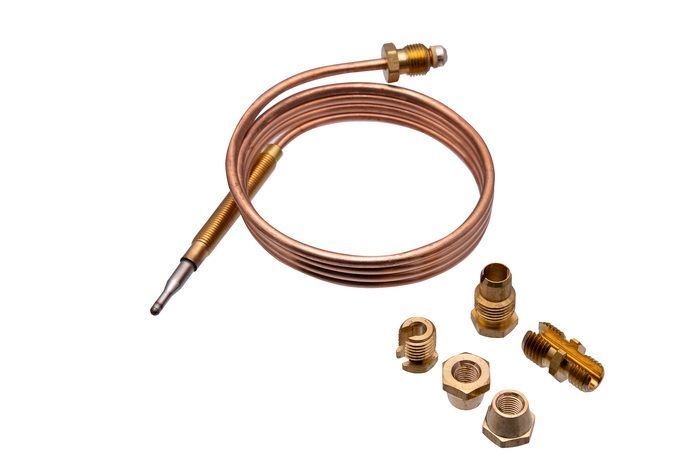

Gas control thermocouple for oven, universal (1200 mm)
The gas control thermocouple is a key component that ensures the safe operation of gas ovens by preventing gas leaks. This universal thermocouple, with a length of 1200 mm, is suitable for most oven models and is designed to monitor temperature, ensuring reliable operation and safety of your appliance.
Technical specifications and compatibility
| Parameter | Value |
|---|---|
| Total length | 1200 mm (±5 mm) |
| Length of thermocouple tip | 63 mm (±1 mm) |
| Length of thermocouple temperature sensor | 18 mm (±1 mm) |
| Diameter of temperature sensor | 3/4 mm |
| Diameter of thread on tip | 6 mm |
| Diameter of tube | 3 mm |
| Diameter of thread on thermocouple | 9 mm |
| Package contents | Thermocouple - 1 pc., adapter - 5 pcs. |
| Thread on adapters | 1 N 10 mm, 2 N 9 mm, 3 N 8/10 mm |
| Voltage | 30 mV |
| Country of manufacture | China |
How to choose the right thermocouple
When selecting a thermocouple, pay attention to the following points:
- The length of the thermocouple should match your oven. Ensure that 1200 mm is sufficient for your model.
- Check the diameter of the thread on the tip and thermocouple to avoid mismatches with existing connections.
- Make sure the necessary adapters for installation are included.
Possible causes of failure and prevention methods
Thermocouple failures can occur for the following reasons:
- Overheating: can lead to thermocouple failure. Regularly check and replace the thermocouple if necessary.
- Contamination: food residues can block the thermocouple. Clean the installation area of the thermocouple to prevent dirt buildup.
- Mechanical damage: avoid impacts and drops on the thermocouple during operation.
Difficulty of thermocouple replacement
Replacing the thermocouple in the oven can be done by yourself, but it requires certain skills. The replacement process includes the following steps:
- Disconnect the oven from the power source.
- Remove any protective panels, if present.
- Disconnect the old thermocouple by carefully unscrewing the threads.
- Install the new thermocouple, following the instructions and securing all connections.
- Check the installation for correctness and reassemble the oven.
Difficulty rating for replacement: medium. If you lack experience with gas appliances, it is recommended to consult a professional technician.
