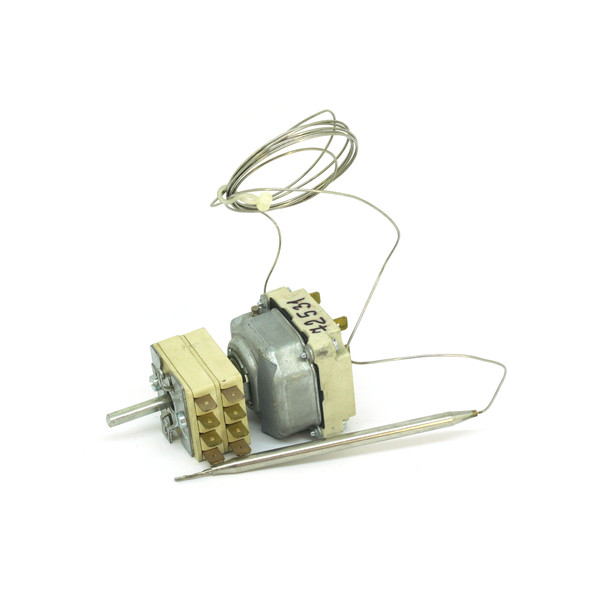

Thermostat for Kogast bain-marie model SBM-180R (TS-0930)
The thermostat 72531 (TS-0930) from Kogast is designed for electric bain-maries, such as SBM-180R, SBM-140, and SBM-210. This component regulates the temperature inside the device, ensuring its efficient operation. Using a quality thermostat is critical for maintaining the desired temperature and preventing overheating or underheating of food.
Technical specifications
| Parameter | Value |
|---|---|
| Operating temperature | +30....+93 °C |
| Electrical load | 16(4)A, 380V |
| Poles | 3 |
| Capillary tube length | 1460 mm |
| Probe length | 120 mm |
How to choose the right thermostat
When selecting a thermostat, it is important to consider the following points:
- Compatibility with the specific model of the bain-marie (e.g., SBM-180R, SBM-140, SBM-210).
- Operating temperature to ensure the necessary range for your application.
- Electrical load to avoid overloading the device.
- Length of the capillary tube and probe to meet your installation requirements.
Make sure the part number (72531 or TS-0930) matches your old thermostat.
Possible causes of malfunction and prevention methods
Thermostat malfunctions can occur for several reasons:
- Wear due to prolonged use. Regularly check the condition of the thermostat and replace it if necessary.
- Overheating due to incorrect settings or failure of other bain-marie components. Monitor the device's operation and address issues promptly.
- Contamination or damage to the capillary tube. It is advisable to avoid mechanical damage and regularly clean the bain-marie.
Difficulty of thermostat replacement
Replacing the thermostat is a moderately difficult task and can be done independently with basic skills in working with electrical devices. It is recommended to follow this procedure:
- Disconnect the device from the power supply.
- Open the bain-marie casing to access the thermostat.
- Disconnect the old thermostat, noting its connections.
- Install the new thermostat, following the connection order.
- Close the casing and reconnect the device to the power supply.
- Check the operation of the new thermostat by setting the desired temperature.
If you are unsure of your abilities, it is better to consult a professional technician for thermostat replacement.
