Flanged heating element for boiler, 1500 W Thermowatt 184280 "short contacts"
Part description

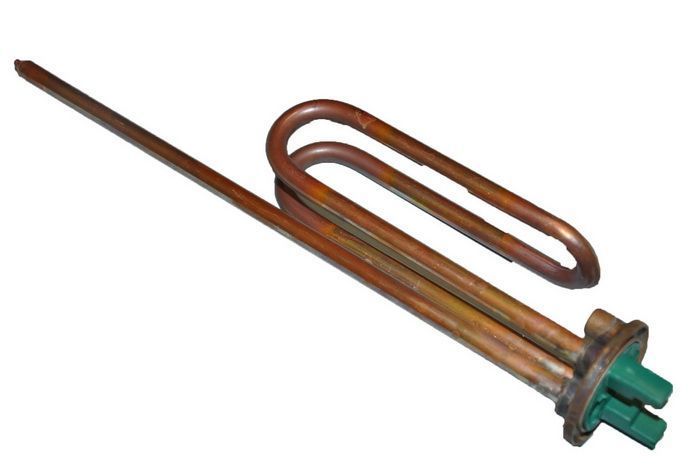

The original Thermowatt 184280 heating element with a power of 1500 W is designed for heating water in boilers from various manufacturers. It features a flat flange with a diameter of 48 mm, short contacts, and a port for a magnesium anode with a thread of M6.
The heating element is made of copper, which ensures high thermal conductivity and resistance to scale formation. The flange is made of brass, enhancing the reliability of the connection.
Main specifications
- Manufacturer: Thermowatt
- Power: 1500 W
- Voltage: 230 V
- Heating element material: copper
- Flange material: brass
- Flange diameter: 48 mm
- Length of heating element from flange: 158 mm (±5 mm)
- Thread diameter for anode: M6
- Connection: 2 terminals (6.3 mm)
- Diameter of sleeves for thermal relay and thermostat: 7 mm
- Length of sleeves for thermal relay and thermostat: 274 mm (±5 mm)
Signs of malfunction
- Boiler does not heat water
- Increased heating time
- Burnout of the heating element due to scale formation
- Unusual noises during heating
Compatibility
To find the required model, use the keyboard shortcut Ctrl+F.
| Brand | Models |
|---|---|
| Gorenje | 291510, 762312, 291511, 762313, 291515, 762314, AP03/10OB, AP3/05, AP3/05OB, AP3/10, AP3/10OB, AP3/15, AP3/15OB, AQUAPOINT 3/15, AQUAPOINT3/05, AQUAPOINT3/10, ATLANT GT10O, ATLANT GT10U, BGO10, BGO15, DG10011D2, DG10502, DG15602, DG30011D2, DG50011D2, DG80011D2, DO15652, GT 10 O (CZ), GT 10 O (P), GT 10 O (UA), GT 10 O MT, GT 10 U (CZ), GT 10 U (P), GT 10 U (UA), GT 10 U MT, GT 15 O (CZ), GT 15 O (P), GT 15 O (UA), GT 15 O MT, GT 15 U (CZ), GT 15 U (P), GT 15 U (UA), GT 15 U MT, GT 5 O (CZ), GT 5 O (P), GT 5 O MT, GT 5 U (CZ), GT 5 U (P), GT 5 U MT, GT 5OEVE, HIT-10, HWS 10.3 A/O, HWS 10.3 A/U, HWS 15.3 A/O, HWS 15.3 A/U, INSTAFLOW +10, INSTAFLOW +15, KDO 052, KDO 102, KDO 152, KDU 052, KDU 102, KDU 152, OTG 100 N, OTG 100 SLIM, OTG 120 N, OTG 150 N, OTG 30 N, OTG 30 SLIM, OTG 50 N, OTG 50 SLIM, OTG 80 N, OTG 80 SLIM, OTG100EVE, OTG120EVE, OTG150EVE, OTG30EVE, OTG50EVE, OTG80EVE, TGR100E/V6, TGR100E/V9, TGR120E/V6, TGR120E/V9, TGR150E/V6, TGR150E/V9, TGR30E/V6, TGR30E/V9, TGR50E/V6, TGR50E/V9, TGR80E/V6, TGR80E/V9, TO 10 IN, TO 10 UP, TO 15 IN, TO 15 UP, TOM10N, TOM15N, TOM5N, TOM5P, TR3500T 100B, TR3500T 10T, TR3500T 15B, TR3500T 30B, TR3500T 50B, TR3500T 80B, WSE 15 Slim |
Conclusion
The original Thermowatt 184280 heating element with a power of 1500 W, featuring a flat flange of 48 mm and an anode port of M6, is suitable for a wide range of boilers, providing quick water heating and reliability in operation.
