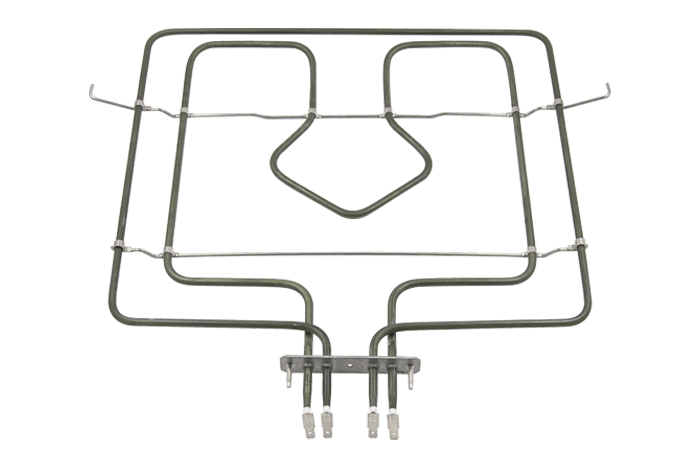

Heating element for oven 365×345 mm Sahterm, 1600+1100 W, 230 V, Gorenje 709465
General description:
The heating element (tubular electric heater) for the Sahterm oven is suitable for electric stoves and is an ideal solution for replacing worn heating elements in Gorenje ovens and other compatible models. With a power of 1600+1100 W and a voltage of 230 V, this heating element provides efficient heating and even temperature distribution, which is critical for quality cooking of various dishes. It is installed at the top of the oven and functions as a grill, providing perfect conditions for baking and browning food.
Technical specifications:
| Specification | Value |
|---|---|
| Type | Heating element for electric stoves |
| Power | 1600+1100 W |
| Voltage and frequency | ~230 V/50-60 Hz |
| Connection | 4 terminals 6.3 mm |
| Width of the heating element | 365 mm (±10 mm) |
| Length of the heating element (from the mounting bracket) | 345 mm (±10 mm) |
| Diameter of the heating tube | 6.5 mm |
| Size of the mounting bracket (flange) | 22×100 mm (±5 mm) |
| Mounting | 2 M4 threaded screws (center-to-center distance 86 mm) |
| Features | Top, grill |
| Manufacturer | Turkey |
How to choose the right heating element:
When selecting a heating element for replacement, it is important to pay attention to the following parameters:
- Dimensions: Ensure that the width (365 mm) and length (345 mm) of the heating element match the dimensions of your appliance.
- Power: Check that the total power of the heating element matches the requirement for your oven.
- Connection type: Pay attention to the number and type of terminals to avoid issues during installation.
Causes of possible malfunctions and their prevention:
Common malfunctions of the heating element can be caused by:
- Burnout of the coil: This can occur due to prolonged use or overheating. Regularly check the condition of the heating element.
- Insulation damage: Insulation may be damaged due to mechanical impacts. Be careful when cleaning the oven.
- Exceeding allowable temperatures: Avoid overheating and monitor the operating modes of the appliance.
Difficulty of replacement:
Replacing the heating element is a relatively simple task and can be done independently. To do this, you need to:
- Disconnect the oven from the power supply for safety.
- Remove the old heating element: unscrew the mounting screws and disconnect the wires.
- Install the new heating element in the designated place, securing it with the mounting bracket.
- Connect the wires to the terminals according to the instructions.
- Turn on the oven and check the operation of the new heating element.
Overall, replacing the heating element can take about 30-60 minutes depending on your experience with appliances.
