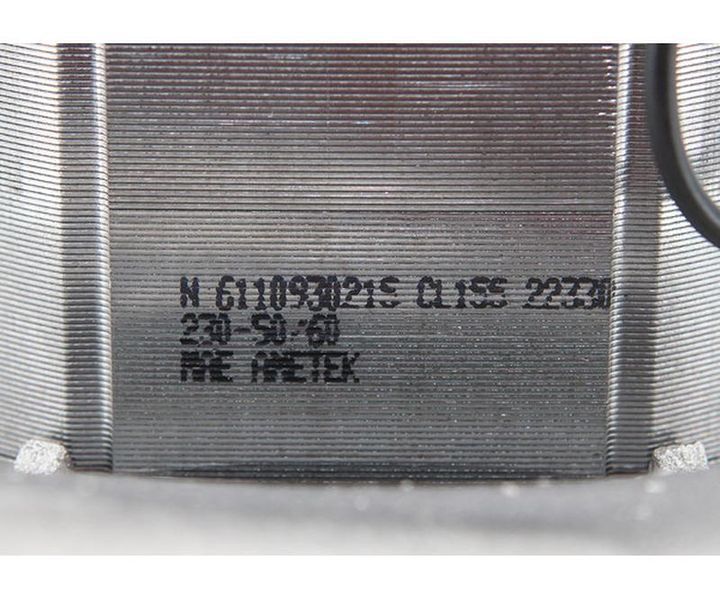

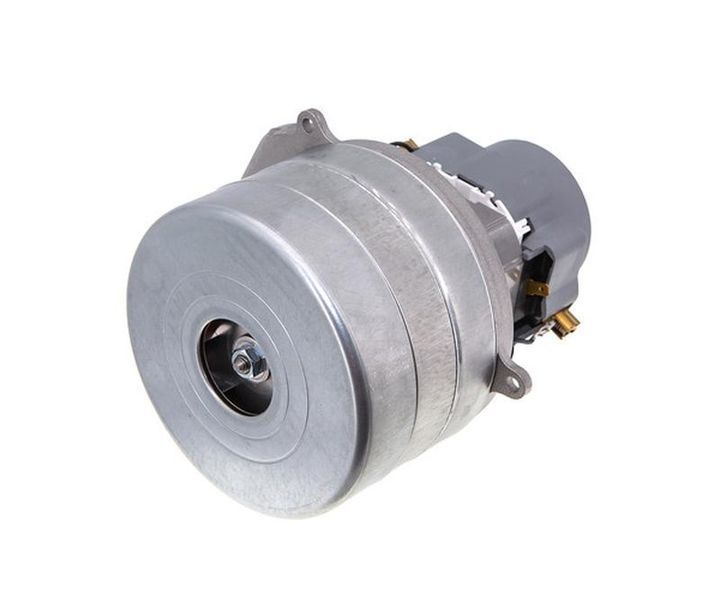

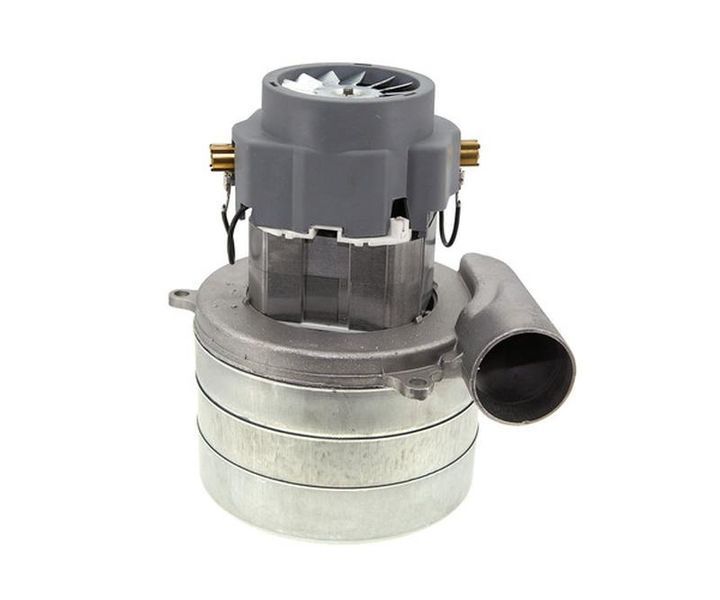

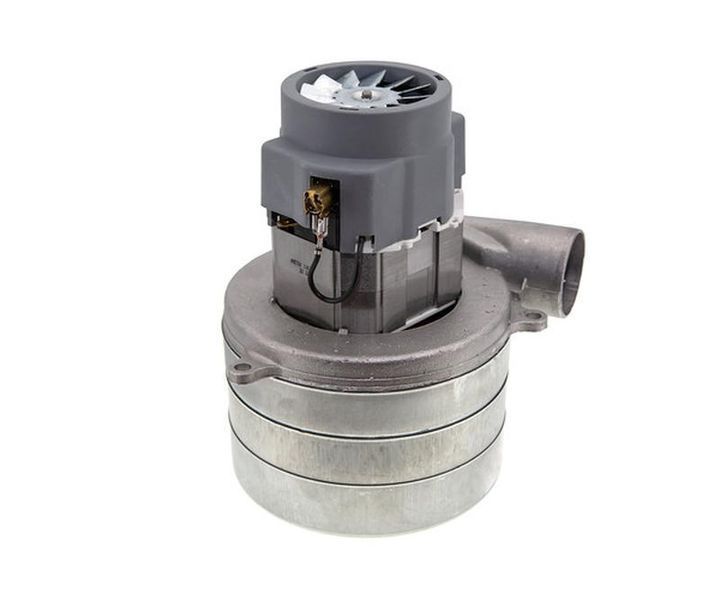

Vacuum cleaner motor Ametek 6110930215 / H 065900003 is an original three-stage bypass motor with a power of 1200 W, designed for installation in industrial and household vacuum cleaners, as well as in central vacuum systems. Made in Italy.
Main specifications:
| Parameter | Value |
|---|---|
| Article number | 6110930215 / H 065900003 |
| Power | 1200 W |
| Power supply voltage | 220–240 V / 50 Hz |
| Motor type | Bypass, tangential, 3-stage |
| Total height | 208 mm |
| Impeller height | 102 mm |
| Impeller diameter | 144 mm |
| Inlet diameter | 44 mm |
| Housing material | Metal + heat-resistant plastic |
| Manufacturer | Ametek |
| Country of manufacture | Italy |
Applications:
This motor is used in:
- Industrial and household vacuum cleaners
- Central vacuum systems
- Wet vacuum cleaners and sweepers
- Vacuum cleaners with water filters
Advantages:
- High power and suction efficiency
- Durability and reliability in operation
- Compatibility with a wide range of vacuum cleaner models
- Ease of installation and maintenance
Installation recommendations:
- Disconnect the vacuum cleaner from the power supply.
- Remove the housing cover and disconnect the old motor.
- Install the new motor, ensuring correct polarity.
- Secure the motor and reassemble the vacuum cleaner housing.
- Connect the vacuum cleaner to the power supply and check its operation.
Attention: Installation should be performed by a qualified specialist. Failure to follow instructions may result in equipment damage and loss of warranty.
